Vein Detector | SVF-700 & SVF-700Plus Near-Infrared Vein Finder
Professional medical device to improve first-stick success rate. Ideal for patients with difficult venous access (obesity, dark skin, edema, pediatric, elderly). CE certified.
Product Overview
Venipuncture is one of the most common clinical procedures, yet its failure rate remains alarmingly high. Studies show first-attempt failure rates range from 10–20% in adults and up to 40% in children. Failed attempts not only cause patient pain and anxiety but also lead to treatment delays, higher infection risks, and even strained doctor-patient relationships. In fact, 58% of patients report dissatisfaction with venipuncture skills.
The VEIN DETECTOR solves this problem. Using the principle that hemoglobin strongly absorbs near infrared light, the Vein Detector generates real time, one to one scale vascular images. This dramatically improves first stick success rates, reduces the need for multiple punctures, and minimizes patient discomfort and complication risks.
Currently SantaMed has 2 types of Vein Detctors for client choices:
product Models comparison
| Model |
SVF-700 |
SVF-700Plus |
| products |
 |
 |
| screen size | 2.4″ HD Color LCD Screen | 2.4″ HD Color LCD Screen |
| Projection Size | 1/2, 2/3, or full size (100×75mm) – for adults, children, infants. | 1/2, 2/3, or full size (100×75mm) – for adults, children, infants. |
| Normal &Inverse Mode | Yes | Yes |
| Single Colors Number | 5 Types | 7 Types |
| dual colors Number | 2 Types | 4 Types |
| Sleeping Mode | Yes | Yes |
| Battery working hours | 6 hours | 6 Hours |
| Projection Resolution | 854*480; | 854*480 |
| Projection Size | 90*60mm | 100*75mm |
| Optimal Projecting distance: | 26+2cm | 26+2cm |
| Surface Color | Whole White | White+Dark Blue |
Application and Suitable Patients
Clinical Departments
Oncology · Vascular Surgery · ICU · Neonatology/Pediatrics · Plastic Surgery · Emergency · General Ward
Special Patient Groups
Children · Burn Patients · Geriatric Patients · Dark Skin · Cosmetic Medicine · Pets (Veterinary use)
Why Choose Our Vein Detector
Our machine are popular in the global market for the below features
Handheld & Non contact
No sterilization needed between patients
Dual Infrared Light Sources
Safe, no laser, no radiation (850nm+850nm)
2.4″ HD Color LCD Screen
Monitor modes and status in real time
Large Rechargeable Batter
6360mAh – ~6 hours continuous work
-

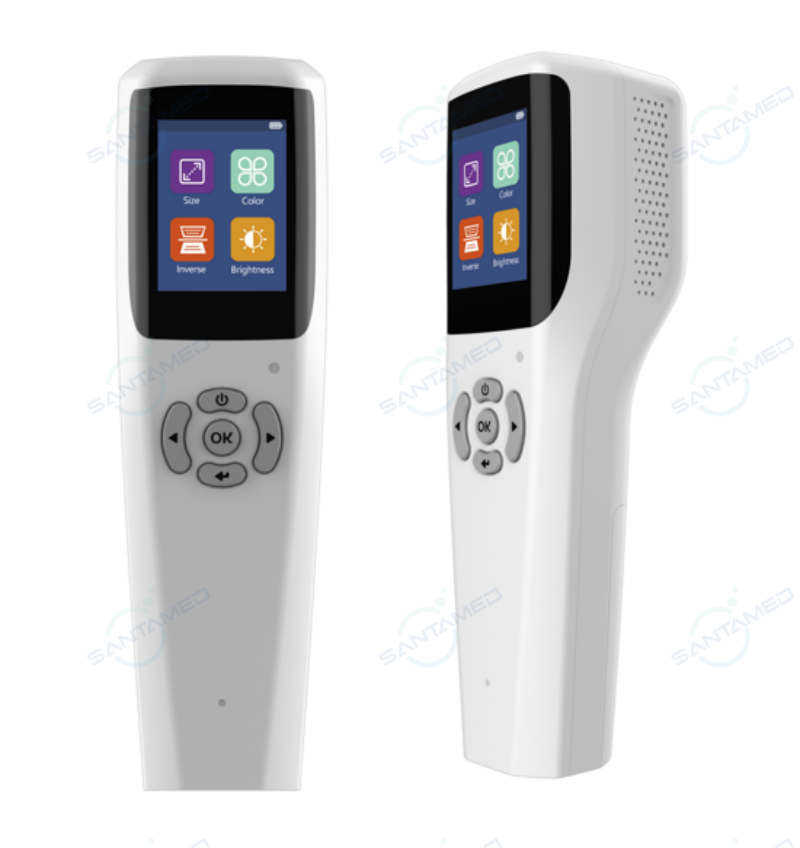

SVF-700 vein detector device with 2.4 inch HD LCD screen
Technical Specification
|
Device Size |
210 × 58 × 63 mm |
|
Light Source |
Near infrared dual light source (850nm + 850nm) |
|
Image Resolution Speed |
>30 frames/sec (no image delay) |
|
Projector Resolution |
854 × 480 |
|
Projection Size (Full) |
100 × 75 mm |
|
Display Screen |
2.4″ HD color LCD |
|
Battery Capacity |
6360 mAh (Li-ion) |
|
Optimal Projection Distance |
26 ± 2 cm |
|
Image Format |
BMP |
|
Device Weight |
~400 g |
|
Battery Working Time |
~6 hours |
Standard accessories and Optional Items
The standard accessories included are as below:
- Charger base
- Power adaptor
- vein detection device
- Protective package or carrying case
Optional (Sold seperatly )
- Flexible table stand
- Mobile trolley stand
Frequently Asked Questions (FAQ)
Q: Is Vein detector safe for kids?
A: Yes, our vein finder is safe for kids, it has no pains and non-contact with patient skin, so it is good choices for health worker use
Q: Does your Vein finder has CE certificate?
A: Yes,all the model of our Vein finders device has CE certificate, so it is reliable and qualified.
Q: Does the Vein finder could work if i have too many tatoos?
A: Yes, The VEIN DETECTOR leverages the strong absorption of near-infrared light by hemoglobin to render real‑time, one‑to‑one scale vascular images. This technology enables clinicians to see veins clearly beneath the skin – even in challenging patients, or people who has tatoos.
Q: Can i buy the vein finder for homecare use?
A: Usually we suggest the vein finder device use in clinic and hospital by health workers, if the patient need homecare, please ask the professions to operate according to the instruction and user manual.
Q: How much the vein finder is?
A: We have 5 different types of vein finder, price ranges from $50USD-$1200USD according to the configuration and model, so please contact our sales team to get the latest quotation and special sample prices.
Contact Us for a Quote
Looking for a reliable vein detector ? Santamed offers high-precision vein finders for easy IV access. Request a quote today!
